gf180mcu_fd_sc_mcu9t5v0__dffnq_1

ok

gf180mcu standard-cell layout `gf180mcu_fd_sc_mcu9t5v0__dffnq_1` from the #4 test corpus.

Schematic

Schematic diagram of gf180mcu_fd_sc_mcu9t5v0__dffnq_1

Drawn from PDK netlist `gf180mcu_fd_sc_mcu9t5v0__dffnq_1.cdl` @ commit `3781fd29` (google/globalfoundries-pdk-libs-gf180mcu_fd_sc_mcu9t5v0), sha256 `bff973c552b4…6259c9`. Transmission-gate master-slave D flip-flop (24 physical devices, structurally identical to sky130's dfxtp_2 minus its doubled output stage), presented as a functional block diagram — every device fully traced by gate/drain/source connectivity into its functional block in issue #1123's PR body.

Renders

Click a render to open an interactive, pan/zoom viewer of the actual GDS.

Overview render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Overview
Comp render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Comp
Contact render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Contact
Dualgate render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Dualgate
Layer 0/0 render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Layer 0/0
Layer 112/1 render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Layer 112/1
Layer 204/0 render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Layer 204/0
Layer 34/10 render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Layer 34/10
Layer 63/63 render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Layer 63/63

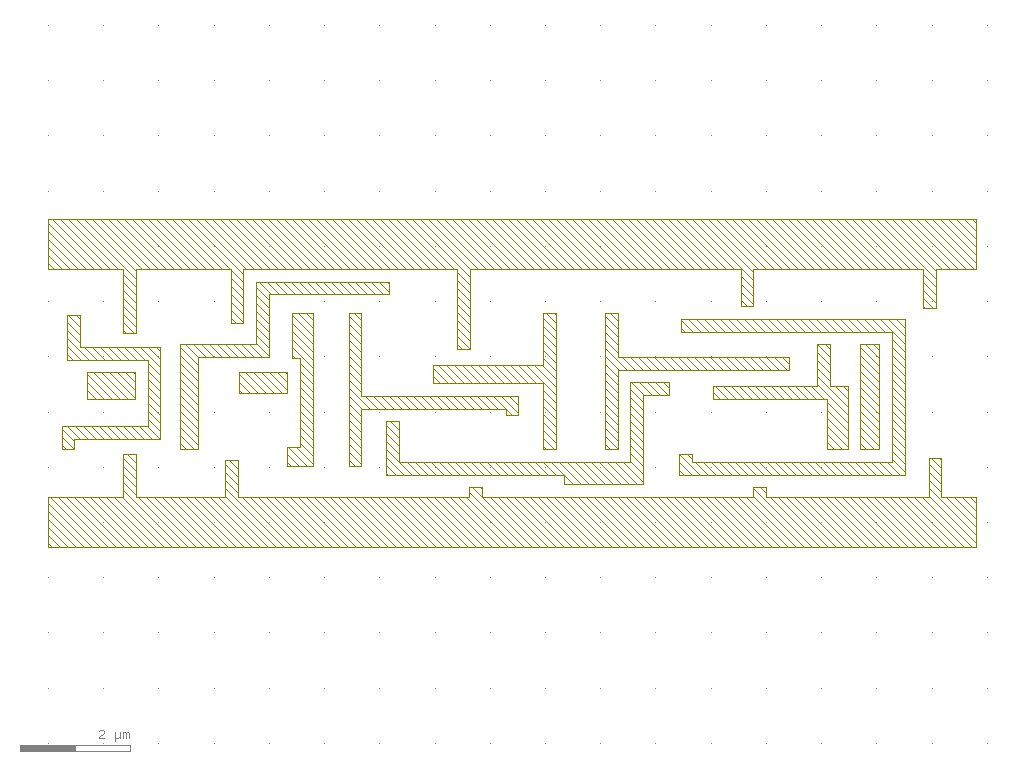

Metal1 render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Metal1
Nplus render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Nplus
Nwell render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Nwell

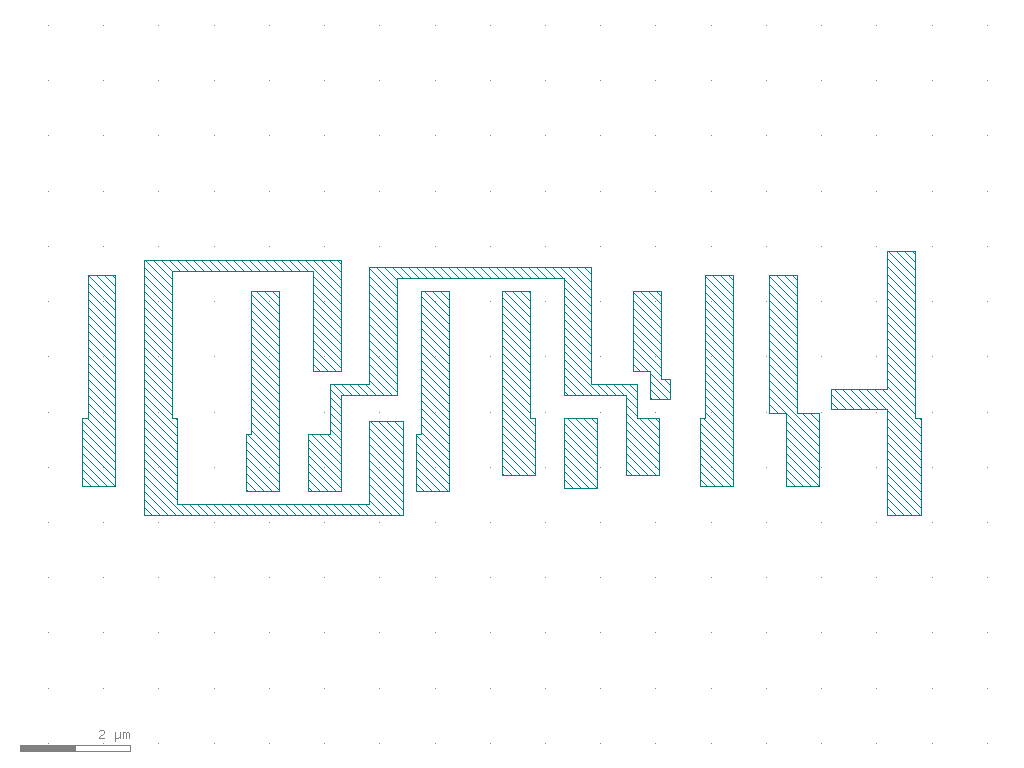

Poly2 render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Poly2
Pplus render of gf180mcu_fd_sc_mcu9t5v0__dffnq_1Click to explore →
Pplus
